BARRETINA HYPER LITE 22.5 m2 "PAMPA"

1. Technical specifications

Model
 BHL-P 22.5 m2 "Pampa"
Surface
 22.5 m2
Flat span
 10.28 m
Flat AR
 4.7
Panels
 29
Weight range
 -
Anchors per rib
 4, and 3 (near tips)
Risers
 3
Certification
 No

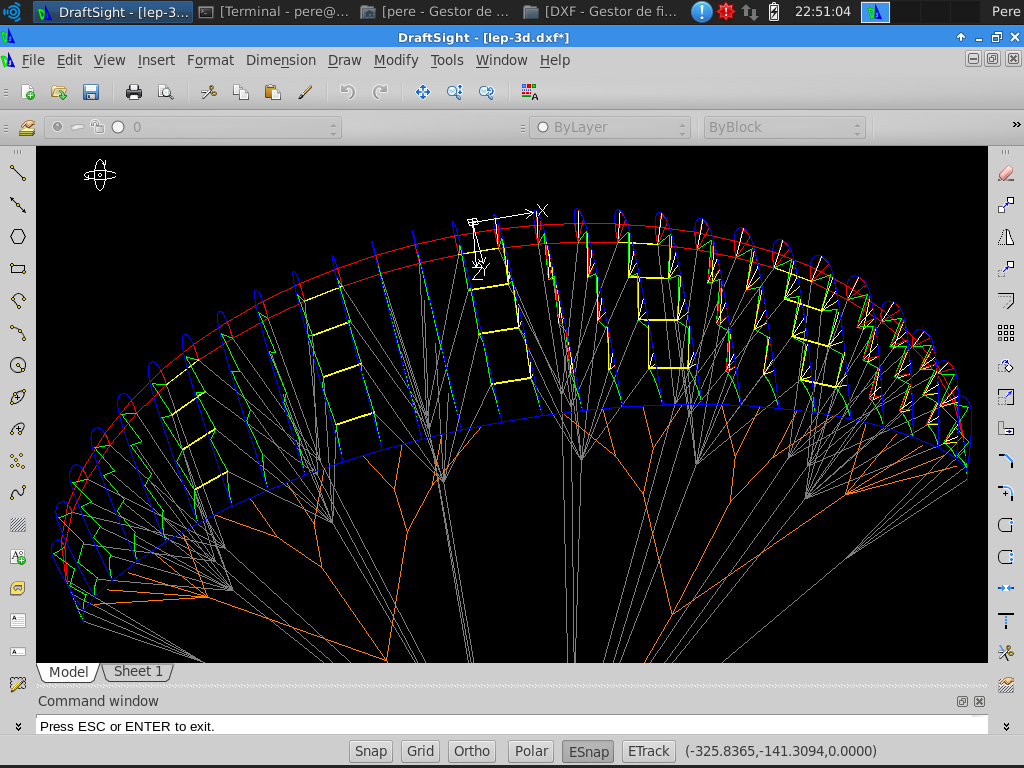

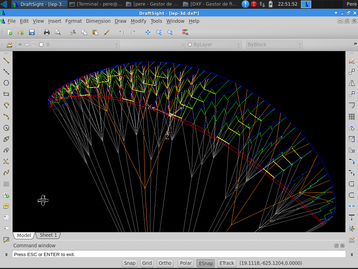

This BHL-P model is 22.5 m2 in size, obtained from size 25 m2 using scale factor K=0.94812. This model uses the LEparagliding latest version (2.33), which fixes some minor bugs of previous versions. In addition, at the request of the builder, incorporates two new features:
1) Only two levels of lines (main and top), with the aim of reducing the number of individual lines
2) Horizontal line segments between vertices of divergent  triangles, to reduce the rotation angle of the triangles, and at the same time increase the global trasversal cohesion.
This glider is  intended for thermal flight in the Pampa plains, towed by van on the roadside tracks.

1
 2
3
 4

2. Plans

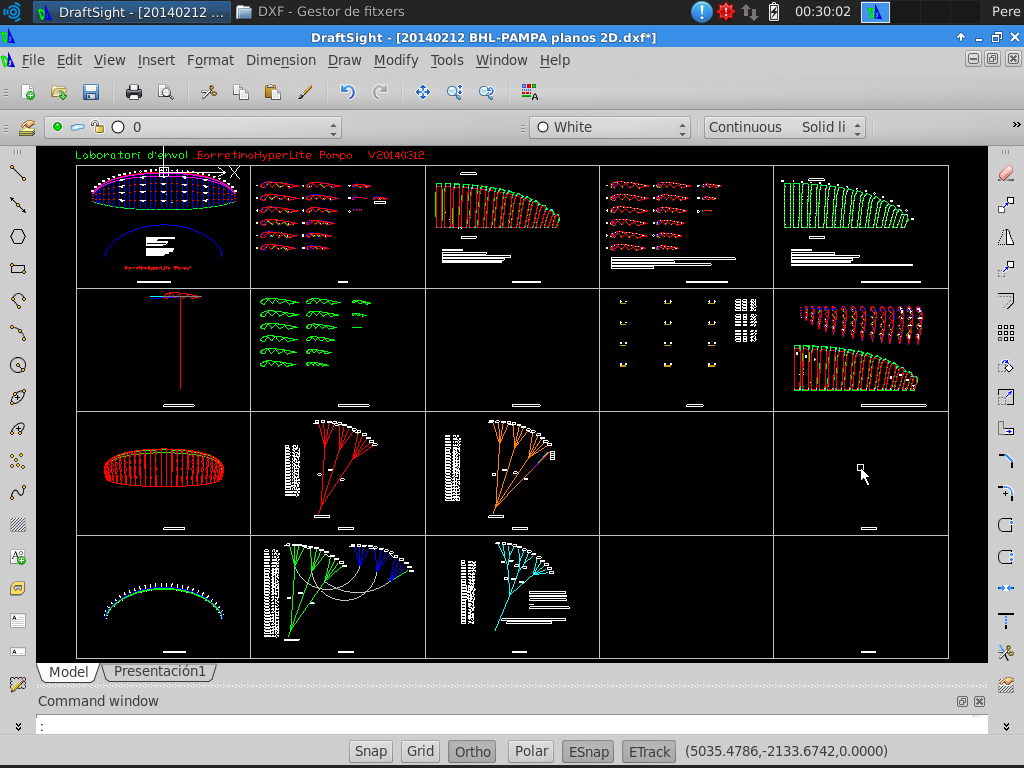

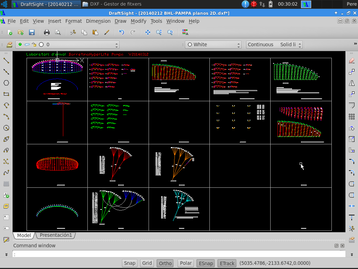

Plans 2D DXF 2000 format (2)
 BHL-P 2D

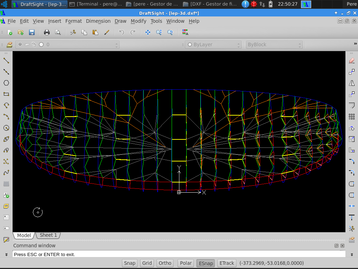

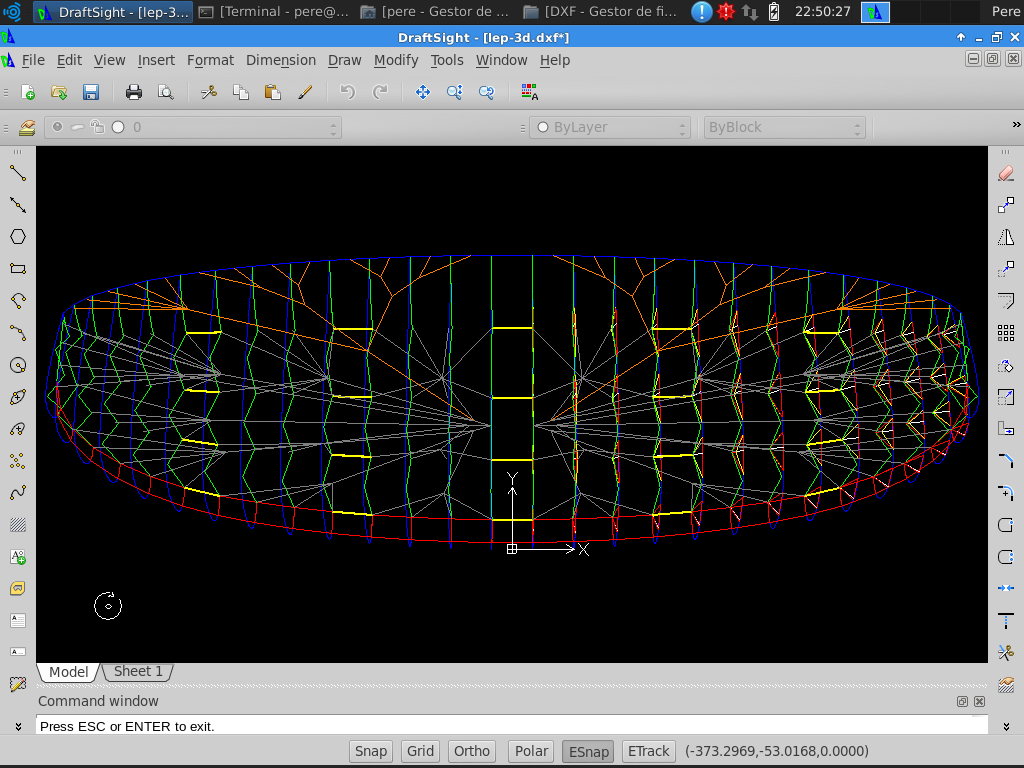

Plans 3D DXF 2000 format
 BHL-P 3D
Line list .xls format,
including corrections
 Lines.xls
PDF views (lines)
 BHL-P lines.pdf
LEparagliding 2.33 main data file
 leparagliding.txt
bhl-p 4 anchors sawtooth airfoil bhl-p-4.txt
bhl-p 3 anchors sawtooth airfoil bhl-p-3.txt
bhl-p zero thickness airfoil bhl-p-e.txt
txt output
 lep-out.txt

3. Construction

The first prototype is been built now (February 2014), by Juan Salvadori, from CZ-Wings CZ Wings Aero-velería, in Jacinto Aráuz, La Pampa Argentina.


4. PDF files of all the parts in A4 sheets
Link to all A4 PDFs . PDFs created from LEparagliding 2.33 DXFs, using PDF utility from SingleSkin 0.3 program ! :-) спасибо!
