1. Ripstop scanned at 300 ppp and 1200 ppp

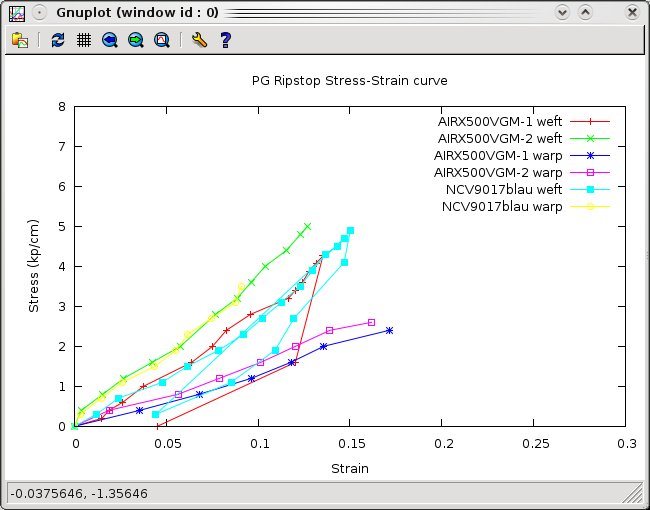

2. Ripstop tests stress-strain
3. Porosity check (Skywach)
1. Ripstop scanned at 300 ppp and 1200 ppp
 NCV 9017 blau 40 gr |
 NCV 9017 blau 40 gr |
 AIRX500 VGM 31 gr |
 AIRX500 VGM 31 gr |

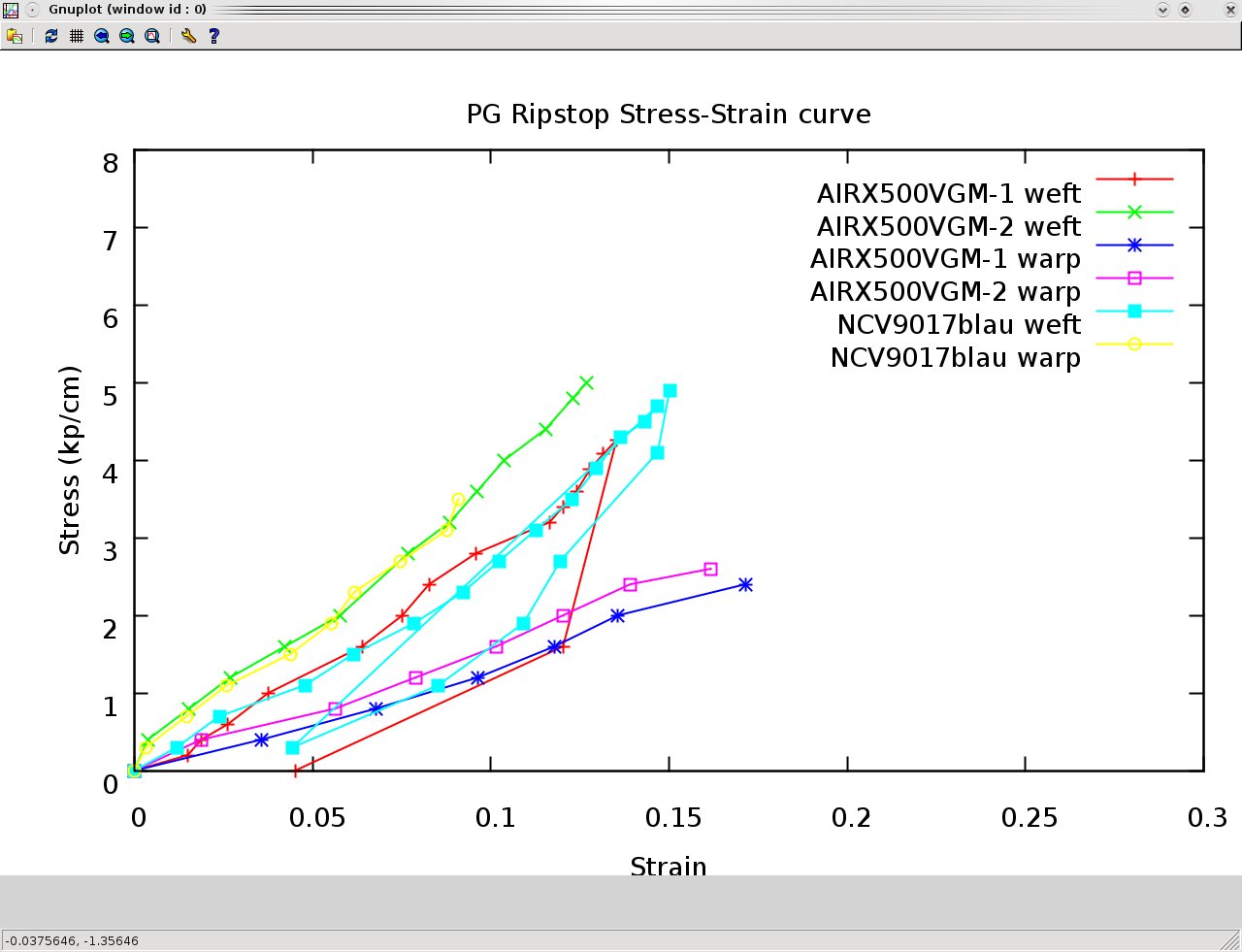

2. Ripstop tests stress-strain
Fig 1. Tests stress-strain performed the 27th and 28th march 2010
NOTE: The results are not provided by the manufacturer, and not are representative of the products listed.
The test stress-strain indicated (Laboratori d'envol method) is only useful for the purpose of theoretical study of materials.
9017 blue sample test 1: 120 seconds
AIRX white sample test 1: 110 seconds
The purpose of this test was only to compare the relative values of porosity in the two samples tested,
and in no case are representative of the characteristic values of the tissues indicated.
Fig 1. Tests stress-strain performed the 27th and 28th march 2010
| AIRX500 VGM (1) weft – trama | |||||
| Experience: 27-3-2010 | |||||
| Load | Load corrected | length | Stress | Strain | |
| liters | kg | mm | kg/cm | - | |
| 0 | 0 | 266 | 0,00 | 0,0000 | 0 |
| 1 | 1 | 270 | 0,20 | 0,0150 | 0,2 |
| 2 | 2 | 271 | 0,40 | 0,0188 | 0,4 |
| 3 | 3 | 273 | 0,60 | 0,0263 | 0,6 |
| 5 | 5 | 276 | 1,00 | 0,0376 | 1 |
| 8 | 8 | 283 | 1,60 | 0,0639 | 1,6 |
| 10 | 10 | 286 | 2,00 | 0,0752 | 2 |
| 12 | 12 | 288 | 2,40 | 0,0827 | 2,4 |
| 14 | 14 | 291,5 | 2,80 | 0,0959 | 2,8 |
| 16 | 16 | 297 | 3,20 | 0,1165 | 3,2 |
| 17 | 17 | 298 | 3,40 | 0,1203 | 3,4 |
| 18 | 18 | 299 | 3,60 | 0,1241 | 3,6 |
| 19,4 | 19,4 | 300 | 3,88 | 0,1278 | 3,88 |
| 20,4 | 20,4 | 301 | 4,08 | 0,1316 | 4,08 |
| 21,3 | 21,3 | 302 | 4,26 | 0,1353 | 4,26 |
| 8 | 8 | 298 | 1,60 | 0,1203 | 1,6 |
| 0 | 0 | 278 | 0,00 | 0,0451 | 0 |
| AIRX500 VGM (2) weft – trama | |||||
| Experience: 27-3-2010 | |||||
| Load | Load corrected | length | Stress | Strain | |
| liters | kg | mm | kg/cm | - | |
| 0 | 0 | 260 | 0,00 | 0,0000 | 0 |
| 2 | 2 | 261 | 0,40 | 0,0038 | 0,4 |
| 4 | 4 | 264 | 0,80 | 0,0154 | 0,8 |
| 6 | 6 | 267 | 1,20 | 0,0269 | 1,2 |
| 8 | 8 | 271 | 1,60 | 0,0423 | 1,6 |
| 10 | 10 | 275 | 2,00 | 0,0577 | 2 |
| 14 | 14 | 280 | 2,80 | 0,0769 | 2,8 |
| 16 | 16 | 283 | 3,20 | 0,0885 | 3,2 |
| 18 | 18 | 285 | 3,60 | 0,0962 | 3,6 |
| 20 | 20 | 287 | 4,00 | 0,1038 | 4 |
| 22 | 22 | 290 | 4,40 | 0,1154 | 4,4 |
| 24 | 24 | 292 | 4,80 | 0,1231 | 4,8 |
| 25 | 25 | 293 | 5,00 | 0,1269 | 5 |
| AIRX500 VGM (1) warp – urdimbre | ||||
| Experience: 27-3-2010 | ||||
| Load | Load corrected | length | Stress | Strain |
| liters | kg | mm | kg/cm | - |
| 0 | 0 | 280 | 0,00 | 0,0000 |
| 2 | 2 | 290 | 0,40 | 0,0357 |
| 4 | 4 | 299 | 0,80 | 0,0679 |
| 6 | 6 | 307 | 1,20 | 0,0964 |
| 8 | 8 | 313 | 1,60 | 0,1179 |
| 10 | 10 | 318 | 2,00 | 0,1357 |
| 12 | 12 | 328 | 2,40 | 0,1714 |
| AIRX500 VGM (2) warp – urdimbre | ||||
| Experience: 27-3-2010 | ||||
| Load | Load corrected | length | Stress | Strain |
| liters | kg | mm | kg/cm | - |
| 0 | 0 | 266 | 0,00 | 0,0000 |
| 2 | 2 | 271 | 0,40 | 0,0188 |
| 4 | 4 | 281 | 0,80 | 0,0564 |
| 6 | 6 | 287 | 1,20 | 0,0789 |
| 8 | 8 | 293 | 1,60 | 0,1015 |
| 10 | 10 | 298 | 2,00 | 0,1203 |
| 12 | 12 | 303 | 2,40 | 0,1391 |
| 13 | 13 | 309 | 2,60 | 0,1617 |
| NCV9017 40 gr blau weft | ||||
| Experience: 28-3-2010 | ||||
| Load | Load corrected | length | Stress | Strain |
| liters | kg | mm | kg/cm | - |
| 0 | 0 | 293 | 0,00 | 0,0000 |
| 1,5 | 1,5 | 296,5 | 0,30 | 0,0119 |
| 2 | 3,5 | 300 | 0,70 | 0,0239 |
| 4 | 5,5 | 307 | 1,10 | 0,0478 |
| 6 | 7,5 | 311 | 1,50 | 0,0614 |
| 8 | 9,5 | 316 | 1,90 | 0,0785 |
| 10 | 11,5 | 320 | 2,30 | 0,0922 |
| 12 | 13,5 | 323 | 2,70 | 0,1024 |
| 14 | 15,5 | 326 | 3,10 | 0,1126 |
| 16 | 17,5 | 329 | 3,50 | 0,1229 |
| 18 | 19,5 | 331 | 3,90 | 0,1297 |
| 20 | 21,5 | 333 | 4,30 | 0,1365 |
| 21 | 22,5 | 335 | 4,50 | 0,1433 |
| 22 | 23,5 | 336 | 4,70 | 0,1468 |
| 0 | 1,5 | 306 | 0,30 | 0,0444 |
| 4 | 5,5 | 318 | 1,10 | 0,0853 |
| 8 | 9,5 | 325 | 1,90 | 0,1092 |
| 12 | 13,5 | 328 | 2,70 | 0,1195 |
| 19 | 20,5 | 336 | 4,10 | 0,1468 |
| 23 | 24,5 | 337 | 4,90 | 0,1502 |
| NCV9017 40 gr blau warp | ||||
| Experience: 28-3-2010 | ||||
| Load | Load corrected | length | Stress | Strain |
| liters | kg | mm | kg/cm | - |
| 0 | 0 | 308 | 0,00 | 0,0000 |
| 1,5 | 1,5 | 309 | 0,30 | 0,0032 |
| 2 | 3,5 | 312,5 | 0,70 | 0,0146 |
| 4 | 5,5 | 316 | 1,10 | 0,0260 |
| 6 | 7,5 | 321,5 | 1,50 | 0,0438 |
| 8 | 9,5 | 325 | 1,90 | 0,0552 |
| 10 | 11,5 | 327 | 2,30 | 0,0617 |
| 12 | 13,5 | 331 | 2,70 | 0,0747 |
| 14 | 15,5 | 335 | 3,10 | 0,0877 |
| 16 | 17,5 | 336 | 3,50 | 0,0909 |
NOTE: The results are not provided by the manufacturer, and not are representative of the products listed.
The test stress-strain indicated (Laboratori d'envol method) is only useful for the purpose of theoretical study of materials.
3. Porosity check (Skywach)
9017 blue sample test 1: 120 seconds
AIRX white sample test 1: 110 seconds
The purpose of this test was only to compare the relative values of porosity in the two samples tested,
and in no case are representative of the characteristic values of the tissues indicated.
