Stainless steel maillons

STAINLESS STEEL MAILLONS

Maillon	Material	WLL (kg) (1,2)	BL (kg)	Geometry (mm length)	Weight (gr)	Usual aplication (3)
2.5mm Stainless Oval Maillon.	Stainless steel	100	500	26	3.1
3 mm Stainless Oval Maillon	Stainless steel	160	800	31	5.3
2.5 mm stainless oval maillon	Stainless steel	70	350	22	2.6
3 mm Stainless Delta Maillon	Stainless steel	110	550	27	6.1	For attaching main paraglider lines to risers (only light weight gliders)
3.5 mm Stainless Delta Maillon	Stainless steel	150	750	31	9.5	For attaching main paraglider lines to risers
4 mm Stainless Delta Maillon	Stainless steel	200	1000	35.5	13.9	Triangular shape normally used for attaching main paraglider lines to risers or sometimes used in tow releases. Also suitable for 3 point load.
5 mm Stainless Delta Maillon	Stainless steel	325	1625	48	24
6 mm stainless delta maillon	Stainless steel	450	2250	56	39.5	Use as single to two point connection
4 mm Stainless Square Maillon	Stainless steel	200	1000	33	15.3
5 mm Stainless Square Maillon	Stainless steel	325	1625	47.5	27	Suitable for attaching reserves to harness points on specialised lightweight gliders only
7 mm Stainless Square Maillon	Stainless steel	625	3125	63.5	66	Use as single point, master connection between your parachute bridle loop and a V-bridle. Attaching risers to harness in Bi glider.
6 mm Stainless Trapezoidal Maillon	Stainless steel	450	2250	57	38.5	Suitable for attaching reserves to harness points or for attaching risers to harnesses

(1) Steel maillons are stamped with a "Working Load Limit" (WLL) corresponding to 20% of their breaking strength (BL).

(2) The WLL is the maximum load the manufacturer guarantees will not deform the maillons, allowing opening of the screw closure with fingers.

(3) When using steel maillons, double-check and triple-check that they are screwed shut properly as part of every pre-flight check.

Diameter (mm)    WLL(kg) delta-square    BL(kg) delta_square    WLL(kg) oval    BL(kg) oval

2.5                        70                                    350                                100                    500
3.0                        110                                550                                160                    800
3.5                        150                                750                                220                    1100
4.0                        200                                1000                            280                    1400
5.0                        325                                1625                            450                    2250
6.0                        450                                2250                            650                    3250
7.0                        625                                3125                            900                    4500
8.0                        770                                3850                            1110                5500

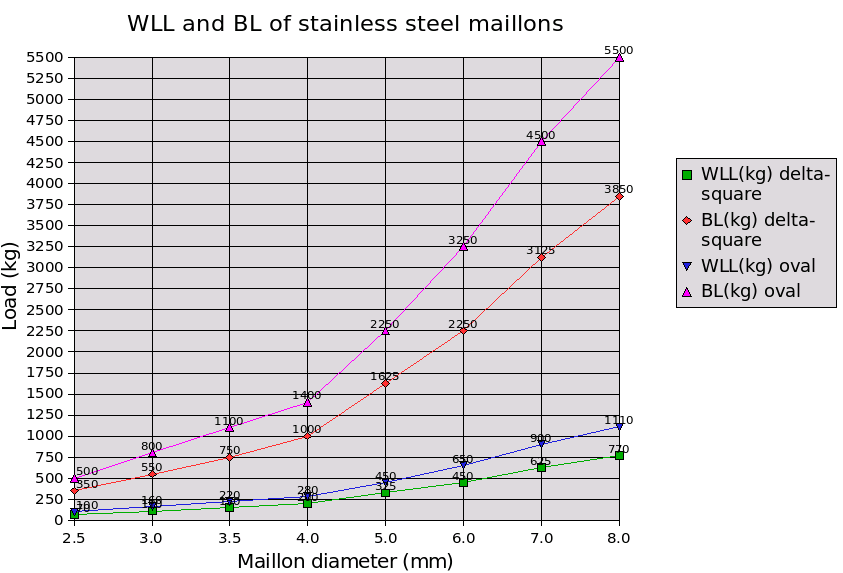

WLL and BL

Fig. 1: Working load (WLL) and breaking load (BL) of stainless steel maillons used on paragliders.
Based on data of manufacturers and own elaboration.
