"Hang glider generator"
Note: these script runs in GNU/Linux, BSD or UNIX
computers, or Windows using a cygwin console.
The bash script "hgg.sh" reads data from file data.txt and generates

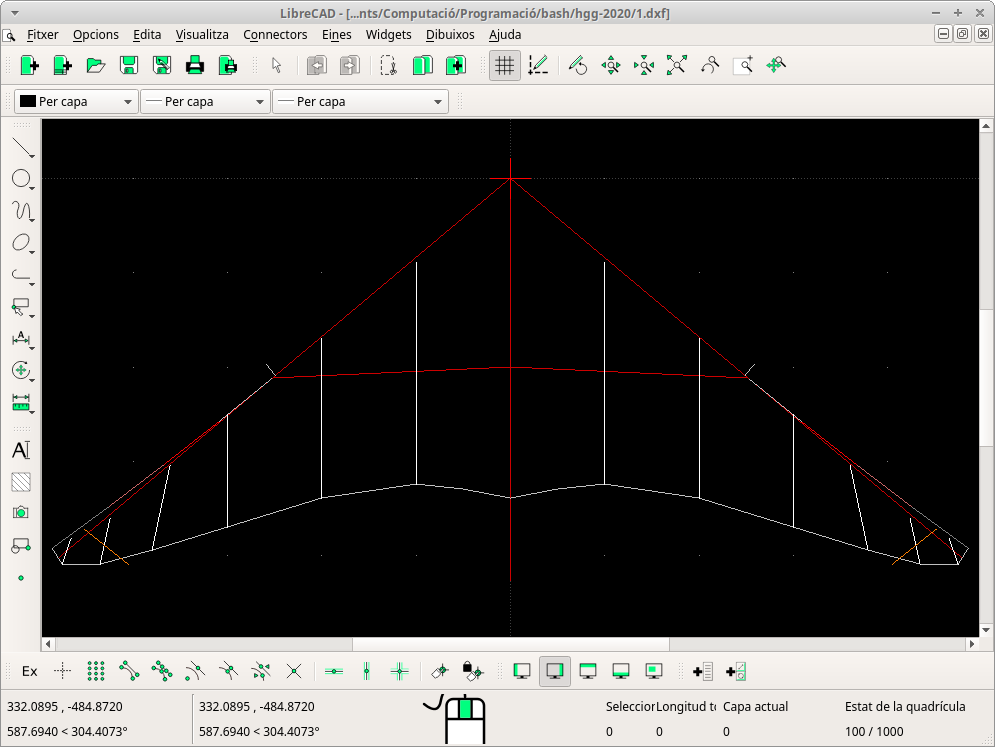

output 1.dxf viewed in librecad or equivalent program.

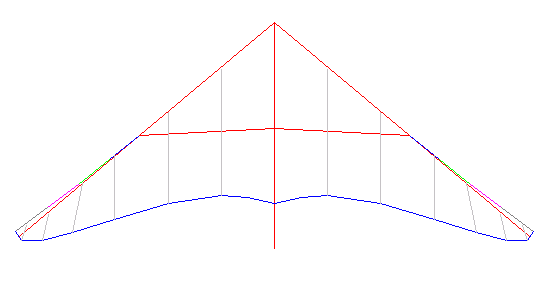

Phoenix6b example (aproximation)
Bash code: hgg.sh (updated october 2020)
Data file: data.txt
Output file: 1.dxf
Read the data file and try to respect the formats, changing only the numbers. Put data in cm. Nose is the (0,0) point.
Put data file and sh script in the same directory and run typing: ./hgg.sh
